High Light: | 50m 6mm double braid polyester rope,100m 6mm double braid polyester rope,220m 6mm double braid rope |
---|

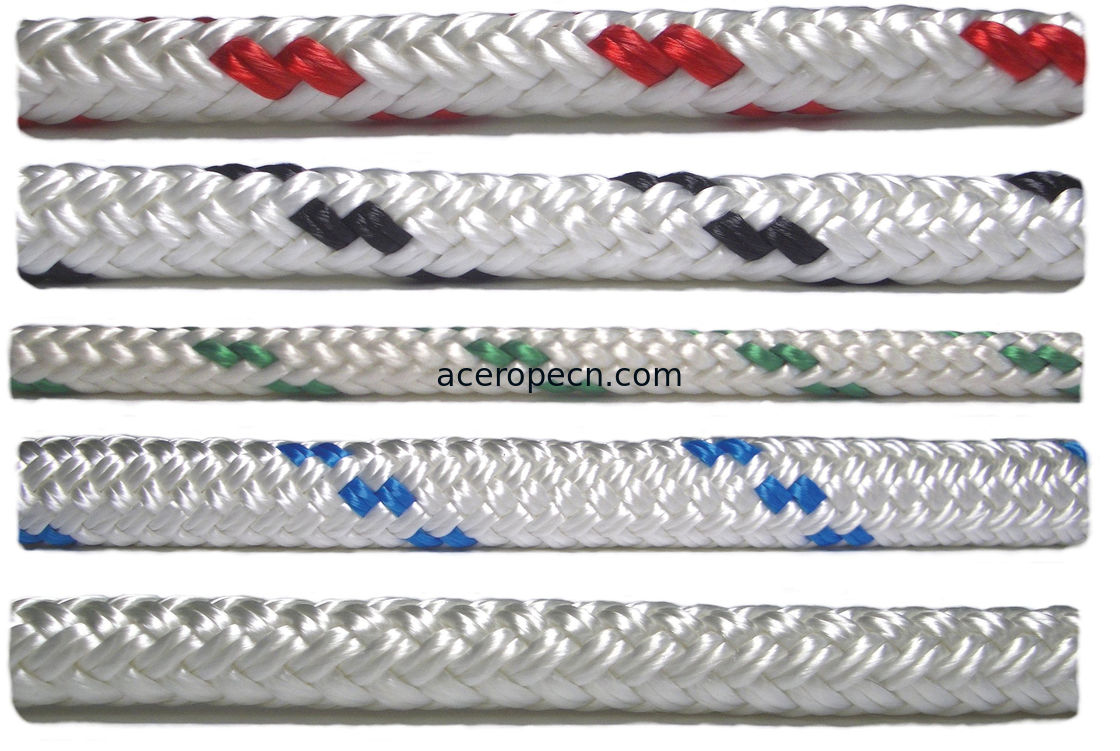

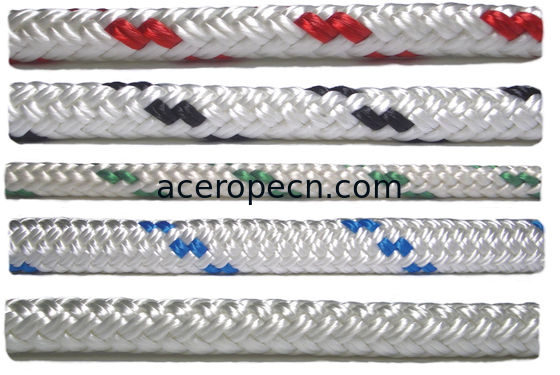

PES Double Braiede Rope
Double braided (two in one braidline) ropes are designed from 100% high tenacity multifilament fibre. the rope is made by braiding a sheat over a braided hollow core. Double braided rope offers size for size greater strength than conventional 3- or 8-strand ropes. the central core contributes to the major part of the breaking strength. the outer sheat completes the strength and garanties the abrasion resistance of the rope. this special process of balanced twist and braiding results in a rope with superior features.
for long ropes like 200M,500M:coil,woven bag;
for short ropes like 5m,10m:hank,bundle,clamshell
for convenient use:plastic reel or wooden reel
DATA SHEET:
Diameter (mm) |
Break Load (kg) |
Extention(strech) at Breakpoint(%) |
Weight (Kg per100 mtrs) |
6 | 700 | 16 | 3.15 |
8 | 1850 | 16 | 5.1 |
10 | 2450 | 17 | 8.00 |
12 | 3100 | 18 | 11.20 |
14 | 3800 | 18 | 15.5 |
16 | 5300 | 18 | 18.8 |
18 | 6000 | 18 | 21.40 |
20 | 7300 | 18 | 27.00 |
24 | 11000 | 18 | 38.00 |
